Here are some general specifications for a Club Car Onward
, based on common models like the 4-passenger lifted electric or gas versions:
Engine/Motor:
Gas: Kohler, Overhead Valve (OHV) with EFI, 14.0 hp (10.3kW) rated @ 3,600 rpm per SAE J1940, 429 cc.
Electric: 7.0kWh lithium-ion battery or 375A AC motor controller with a peak of 29 hp (21.4kW).
Speed: Maximum speed typically around 19 mph (30 kph).
Brakes: Self-adjusting, rear-wheel mechanical drum (gas) or four-wheel mechanical drum (electric), with a foot-actuated, 3-position park brake.
Suspension:
Front: Independent leaf spring with dual hydraulic shocks (gas) or independent A-arms with hydraulic shocks (electric).
Rear: Independent leaf spring (gas) or patent-pending with track bar and automotive-grade jounce bumpers (electric).

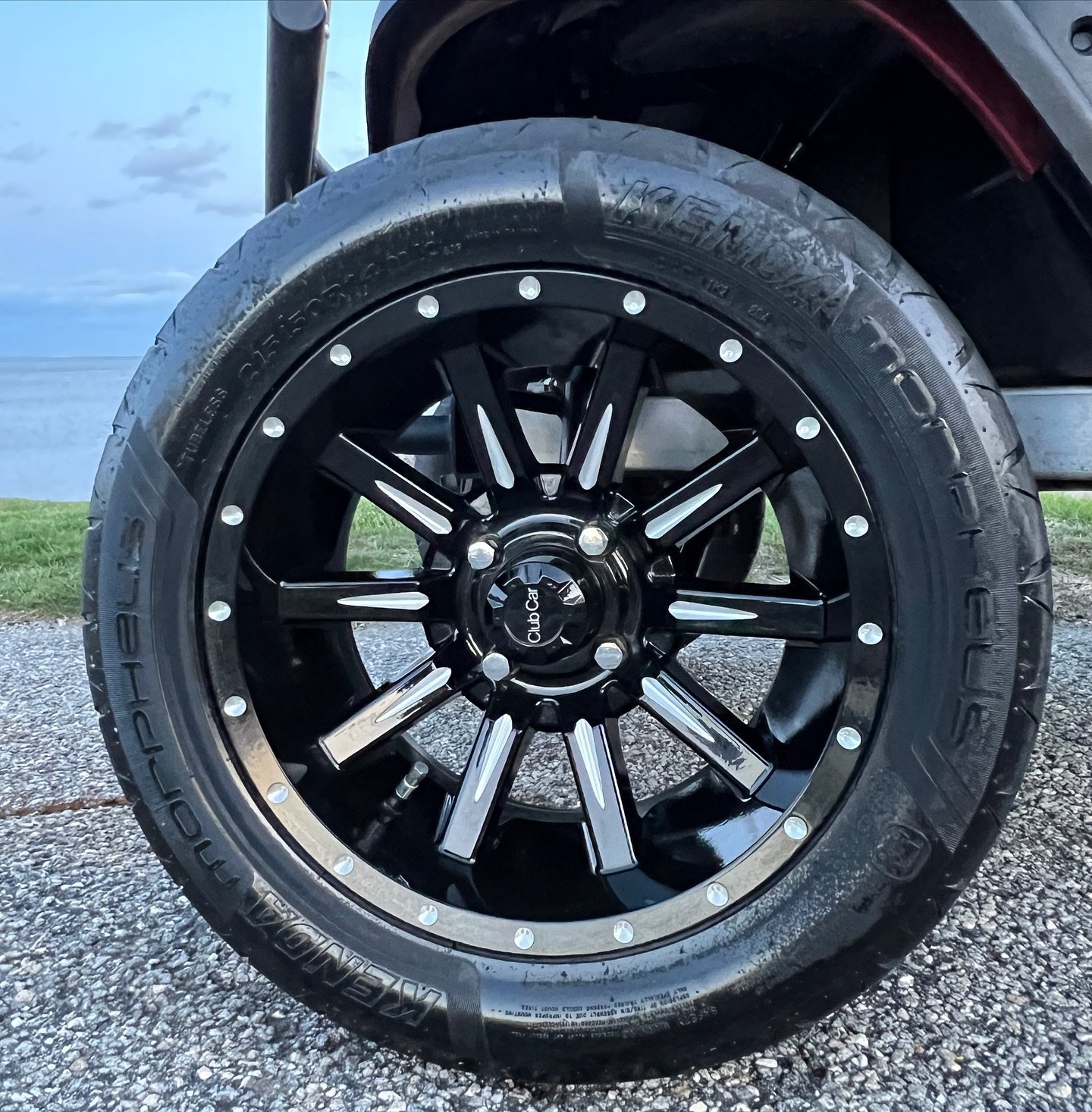

Tires: Commonly 23 x 10 – 10 Tubeless for lifted models.

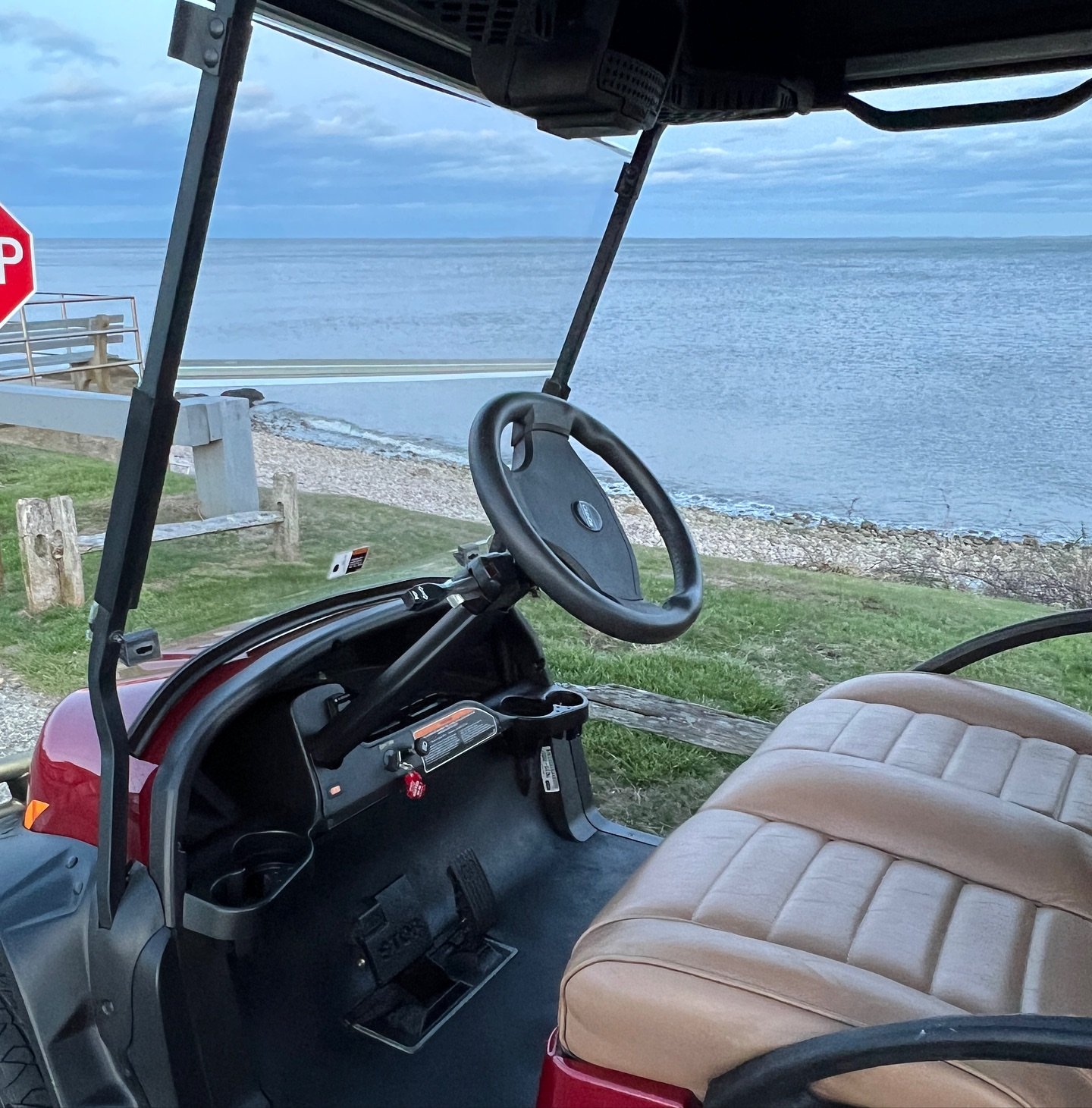

Steering: SportDrive™ — Self-compensating double reduction helical rack and pinion.

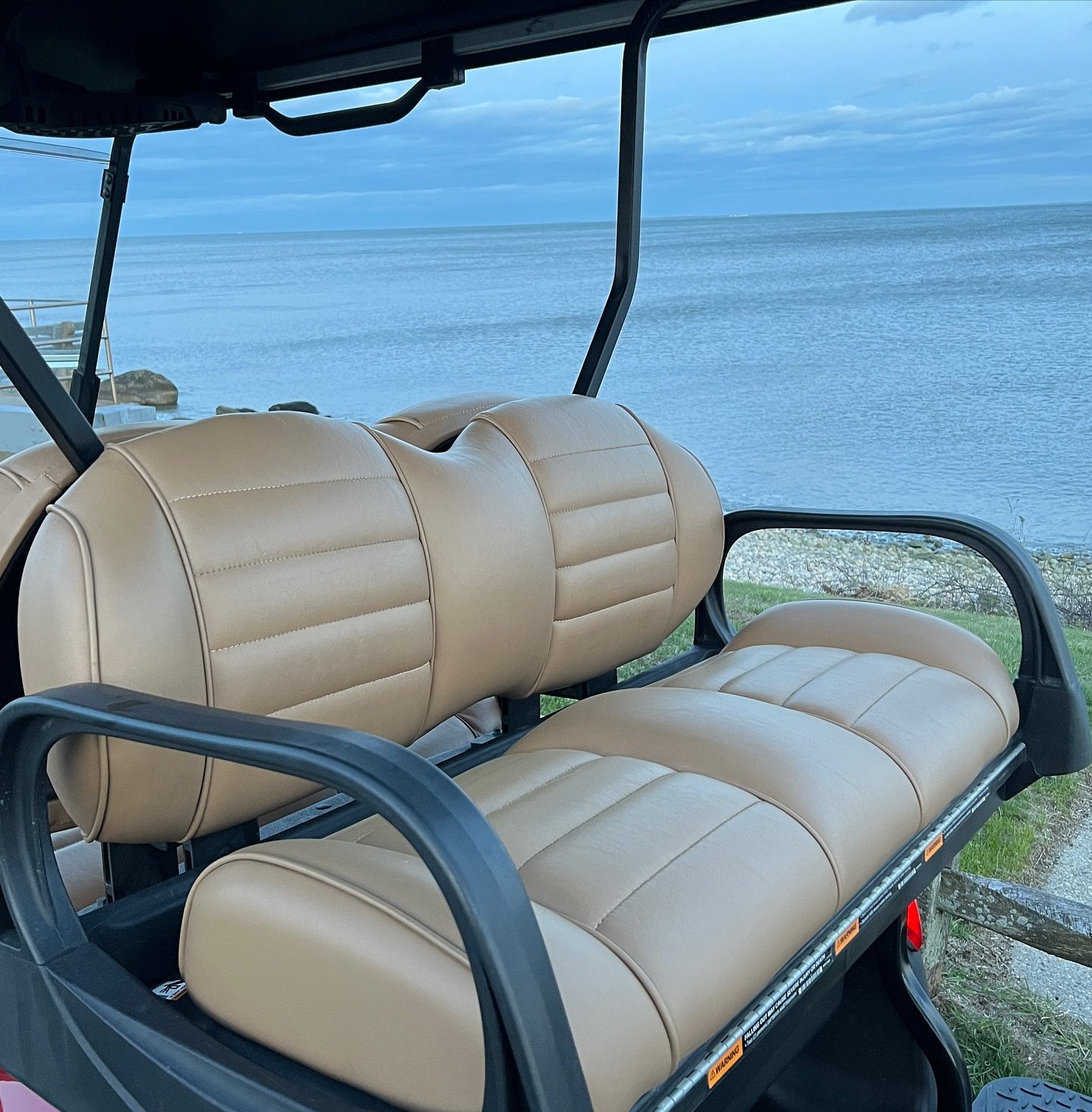

Seating: Available in 2, 4, or 6-passenger configurations.
Body and Finish: Front: Painted TPO; Rear: Painted Surlyn. Available in various metallic colors like Tuxedo Black, Blue Onyx, Cashmere, Glacier White, Jade Green, Midnight Silver, Pearl Mist Grey, Rally Red, and Sea Foam.
Features: May include USB-A & USB-C charging ports (Onward LSV 4 Passenger model).
