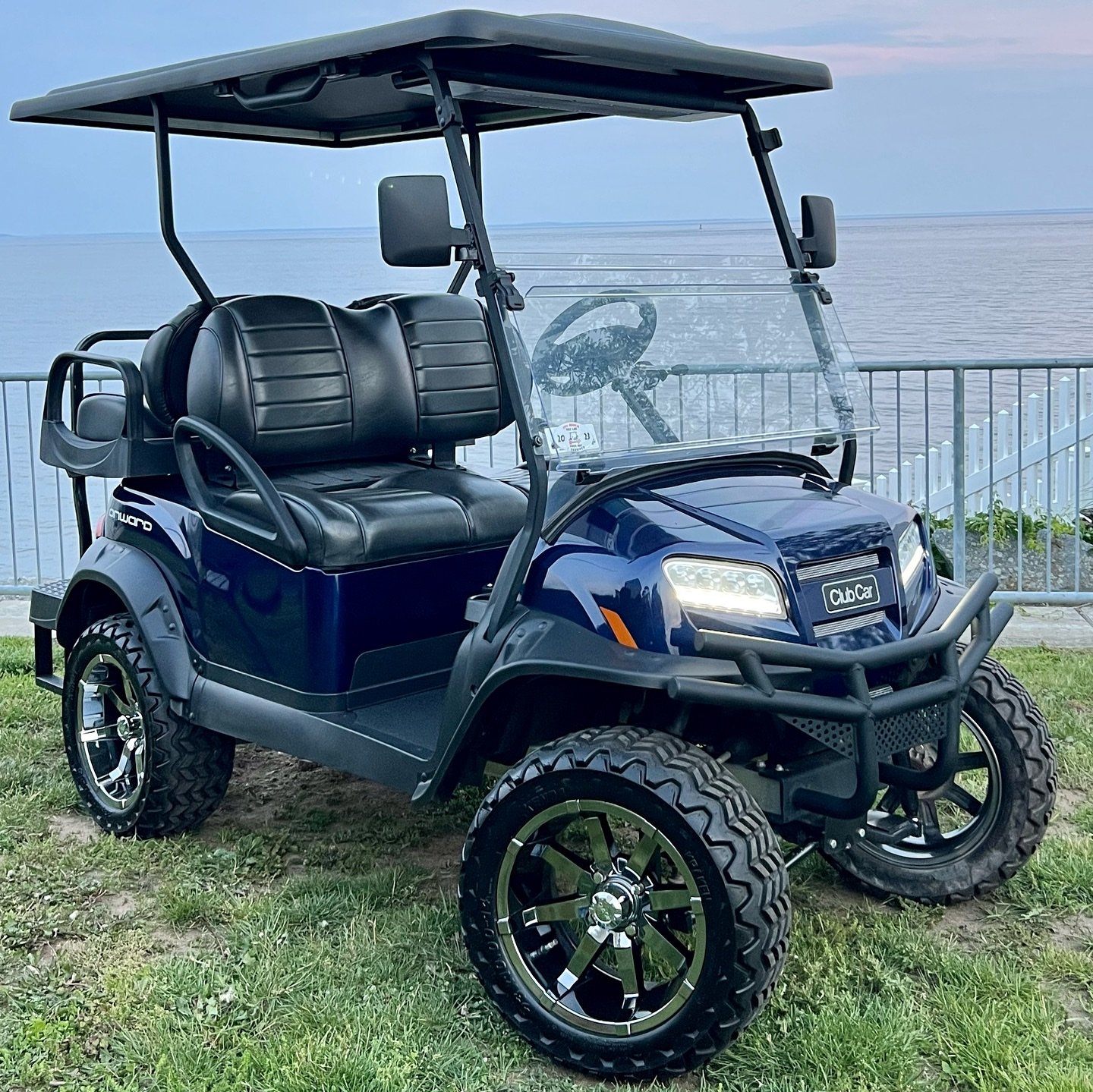

Club Car Onward 4 Passenger Electric golf cart, as depicted in the image, offers various specifications, including:
Motor & Electrical System:
Motor: 48V Excel™ with 250A DC motor.
Motor Power: 3.3 hp (2.4 kW) rated; Peak 13 hp (9.6 kW).
Battery: (6) 8-volt.
Charger: E.R.I.C. Automatic, 48-volt; UL, CSA listed.
Performance:
Top Speed: Approximately 19 mph (30 kph).
Dimensions & Weight:
Length: 108 inches.
Total Vehicle Weight: 1,070 lb.
Operational Features:
Brakes: Self-adjusting, rear-wheel mechanical drum with foot-actuated, 3-position park brake.
Suspension: Independent leaf spring with dual hydraulic shocks at the front.
Steering: SportDrive™ — Self-compensating double reduction helical rack and pinion.
Tires: 205 x 55 – 10 tubeless.
Seating: Designed for 4 passengers.
Frame & Body:
Frame Type: AlumiCore™ — Ladder-style aluminum box beam.
Body and Finish: Painted TPO at the front and painted Surlyn at the rear.
