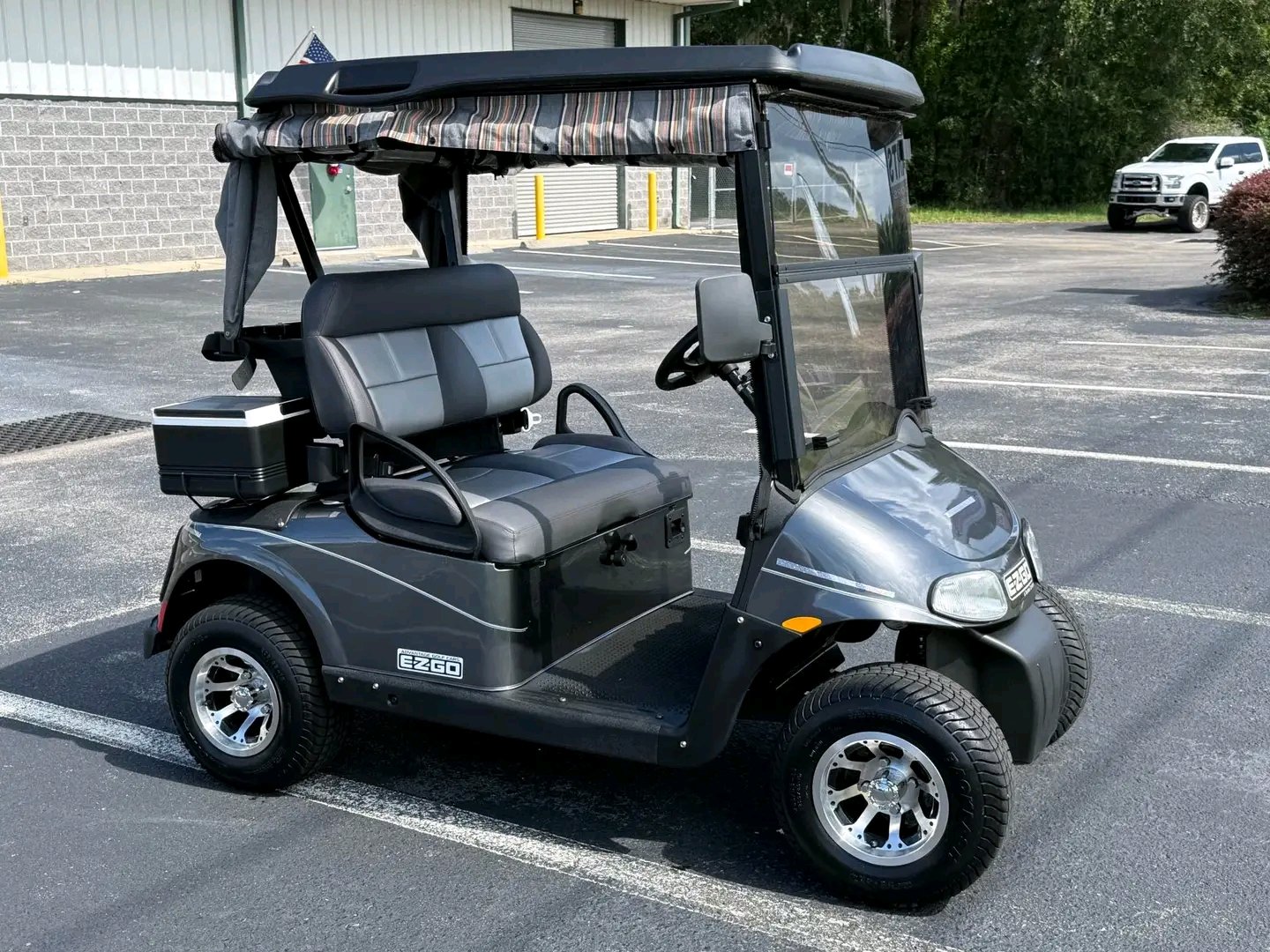

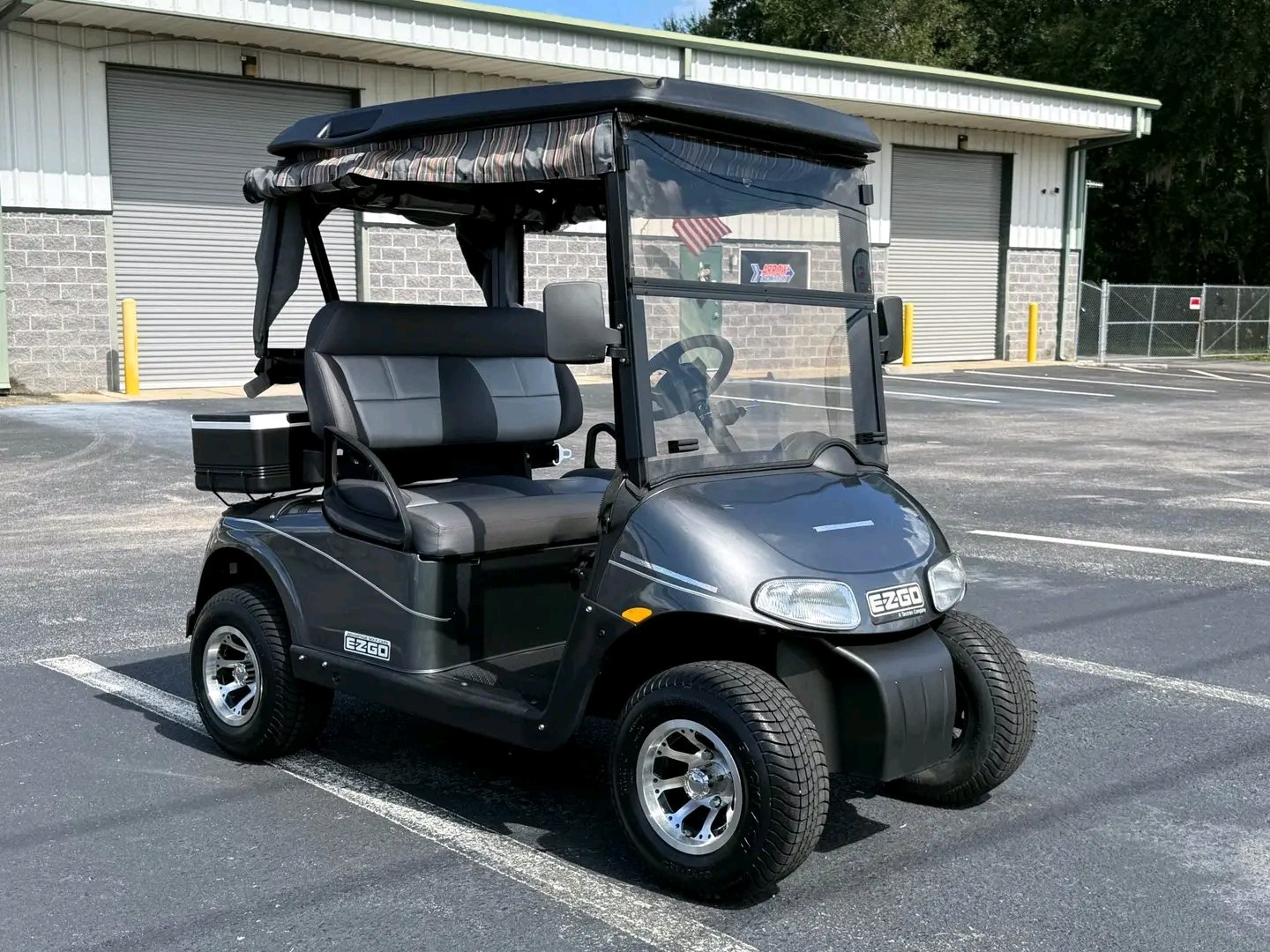

The E-Z-GO RXV golf cart, as depicted in the image, offers various specifications depending on the model year and power source (gas or electric). Below are some general specifications for the E-Z-GO RXV, drawing from multiple sources:
Dimensions (may vary slightly by model/year):
Overall Length: Approximately 94.5 in (240 cm).
Overall Width: Approximately 47.0 in (119 cm).
Overall Height (with canopy): Around 68.5 in (174 cm) to 70 in (178 cm).
Wheelbase: Approximately 65.7 in (167 cm).
Ground Clearance: Around 4.0-4.5 in (10-11 cm) @ Differential.
Power and Performance (Electric Model – e.g., RXV ELiTE):
Power Source: 48-volt AC or 56V Lithium ELiTE 2.2.
Motor Power: 4.4 hp (3.3 kW) continuous.
Batteries: ELiTE 2.2 Lithium or other 48-volt options.
Speed: Up to 19 mph (30.6 kph).
Seating Capacity: 2-passenger (standard).
Vehicle Load Capacity: Approximately 800 lb (360 kg).
Power and Performance (Gas Model – e.g., RXV Freedom EX1):
Power Source: Single Cylinder OHC, 4 Cycle, 9.15 cu in (150 cc).
Horsepower: 11.5 hp (8.6 kW) J1995 standard.
Drivetrain: Continuously Variable Transmission (CVT).
Speed: Around 24 mph ± 0.5 mph (19.3 kph ± 0.8 kph).
Chassis and Suspension:
Frame: Welded Steel with Powder-Coat Protection.
Steering: Double-Ended Rack and Pinion.
Front Suspension: Independent A-Arm Coil-Over Shock.
Rear Suspension: Mono-Leaf Spring with Hydraulic Shocks.
Brakes: Induction Motor or Rear Wheel Mechanical Self-Adjusting Drums (depending on model).
Parking Brake: Automatic Electro-Magnetic.
Features (may vary by trim and year):
Head, Tail & Brake Lights, Turn Signals.
Foldable Windshield.
Deluxe Seats.
Custom Tires/Wheels.
Bag Cover.
Dual USB Port.
Integrated Cup, Ball & Tee Holders.
IntelliBrake™ technology (on electric models).
