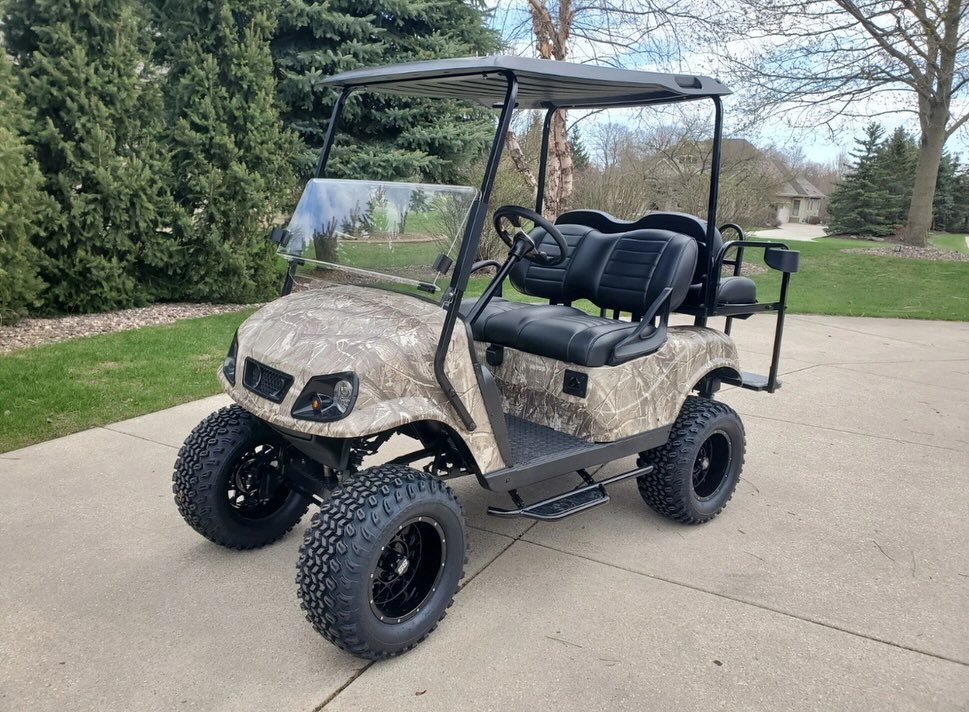

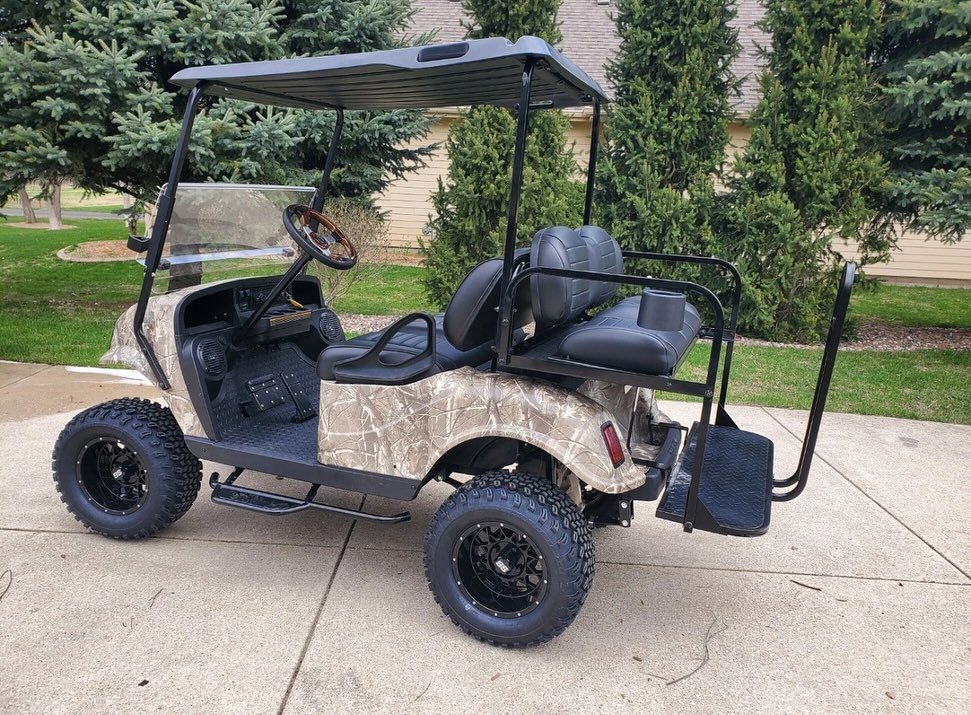

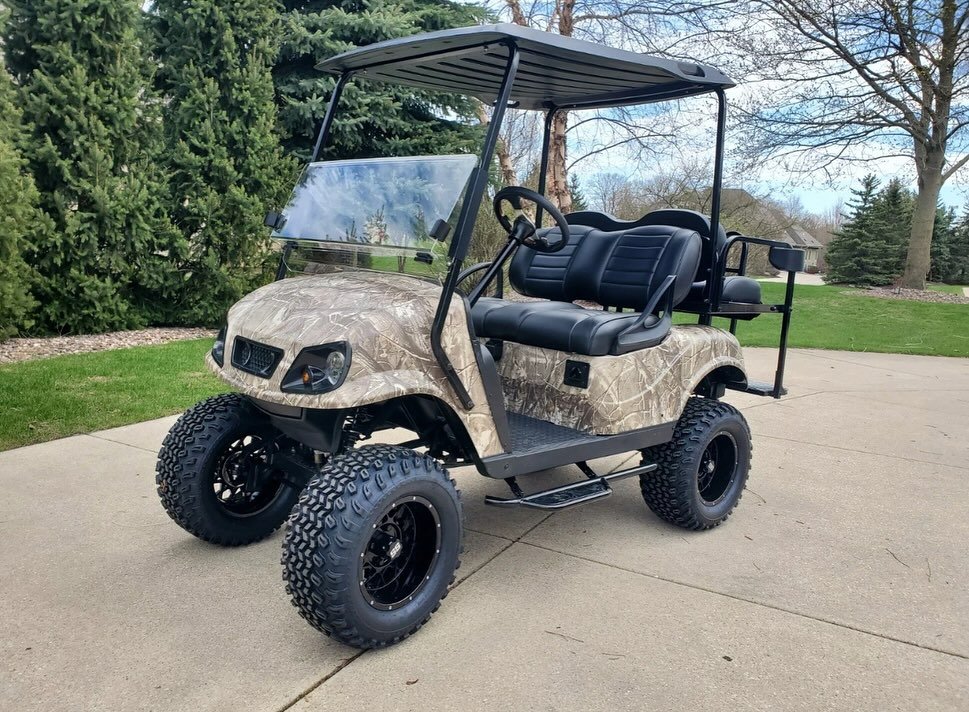

The E-Z-GO TXT Elite Realtree Camo Golf Cart in the image is a lifted model with a custom camouflage finish and off-road tires. While specific modifications may vary, here are the general specifications for an E-Z-GO TXT Elite golf cart, which can be powered by either a 48V electric system or a gas engine:
General Specifications (E-Z-GO TXT Elite):
Seating Capacity: Typically designed for 4 passengers.
Powertrain Options:

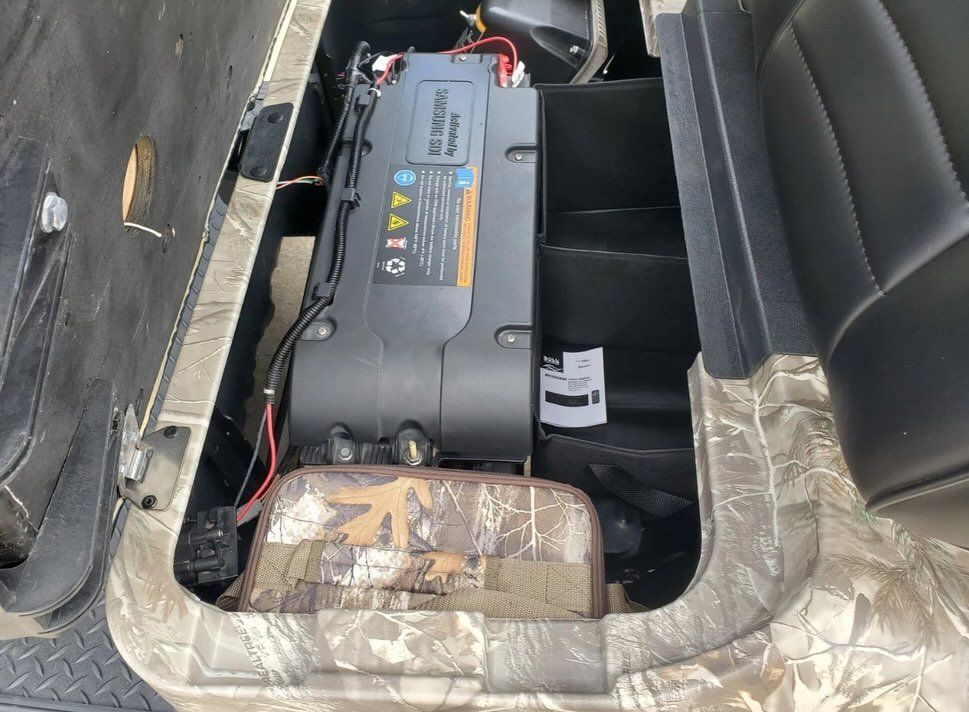

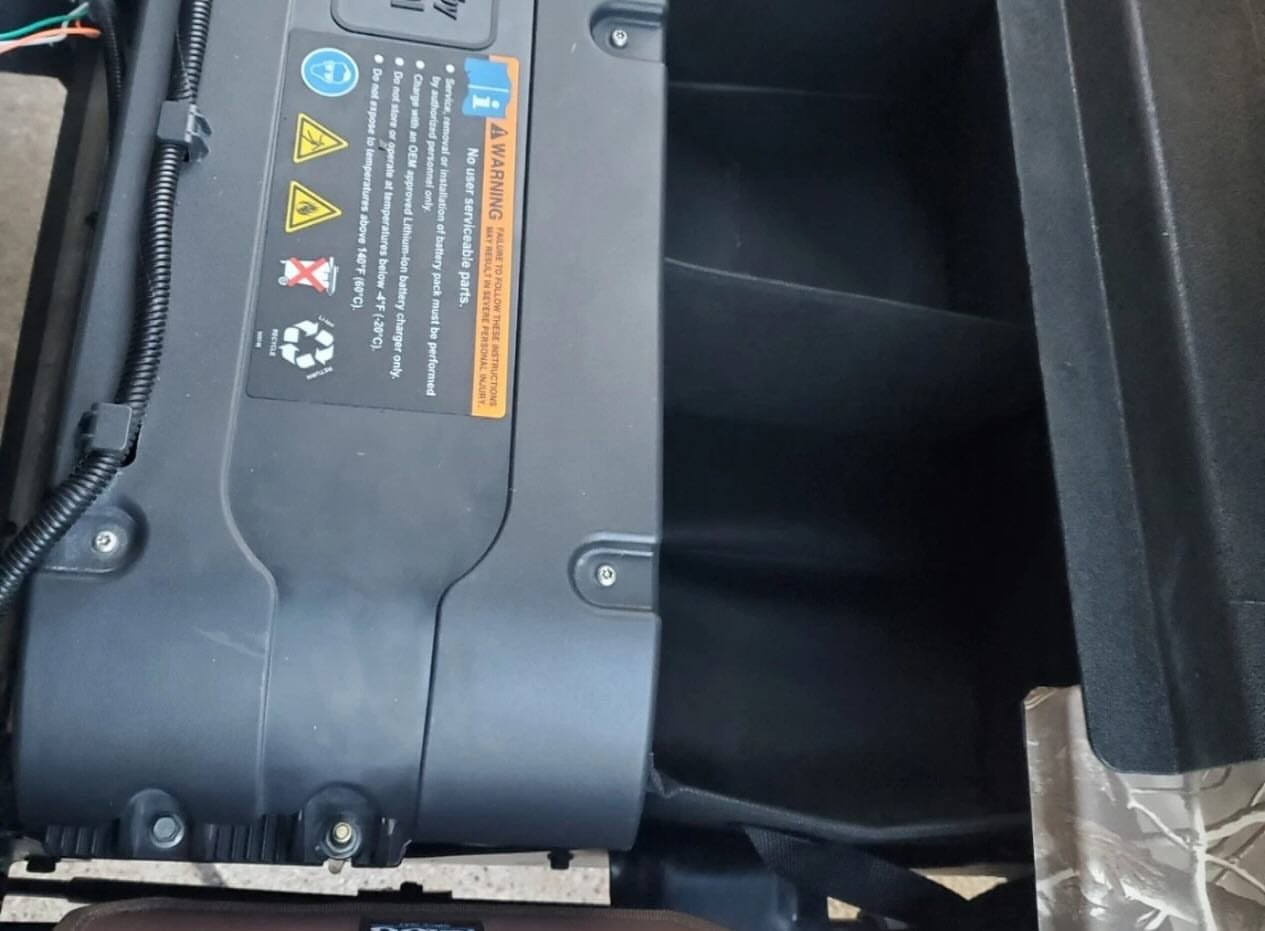

Electric: 48V AC electric drivetrain with ELiTE Lithium powertrain (Samsung SDI technology) for extended range and zero maintenance.
Gas: EX1 gas engine with closed-loop EFI for increased power.
Dimensions:
Overall Length: Approximately 106 in (269 cm).
Overall Width: Approximately 48 in (122 cm).
Overall Height (with Roof): Approximately 76 in (193 cm).
Wheelbase: Approximately 76.5 in (194 cm).
Ground Clearance: Standard models are around 4.5 in (11 cm), but the pictured model is lifted.
Performance (Electric ELiTE Lithium):
Dry Weight: 914 lb (415 kg) (without batteries).
Curb Weight: 960 lb (435 kg).
Load Capacity: 800 lb (363 kg).
Speed: Up to 19 mph (30.6 kph).
Steering & Suspension:

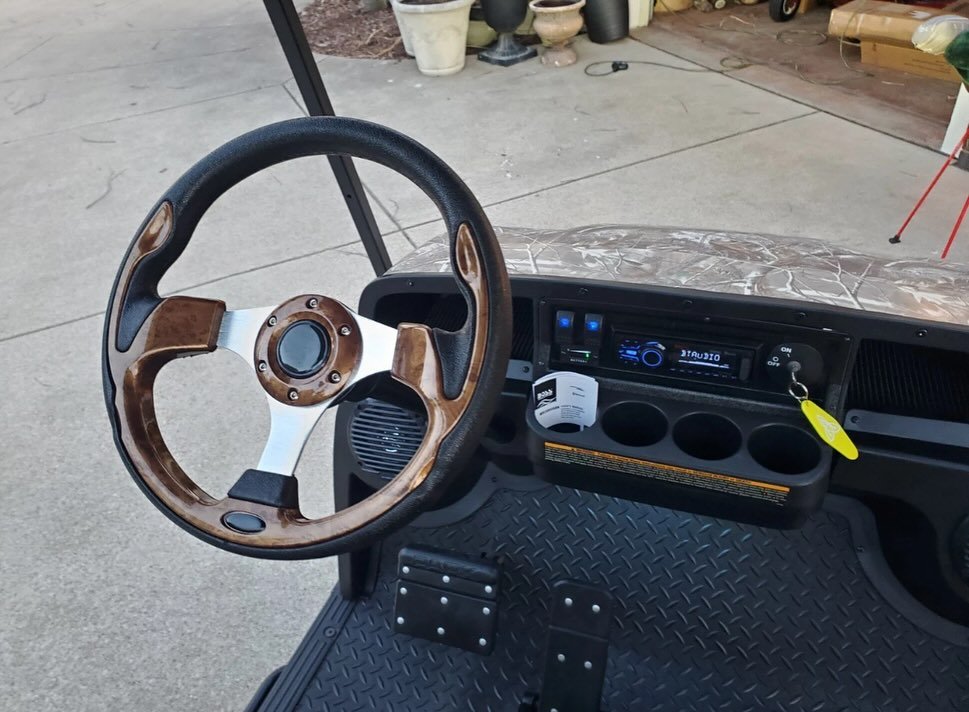

Steering: Self-Compensating Reduction Rack and Pinion.
Suspension: Leaf Springs with Hydraulic Shock Absorbers.
Brakes:
Service Brake: Dual Rear Wheel Mechanical Self-Adjusting Drum.
Parking Brake: Automatic Electro-Magnetic.
Body & Chassis:
Frame: Welded Steel with DuraShield Powder Coat.
Body & Finish: Injection Molded TPO (with custom Realtree Camo finish as shown).

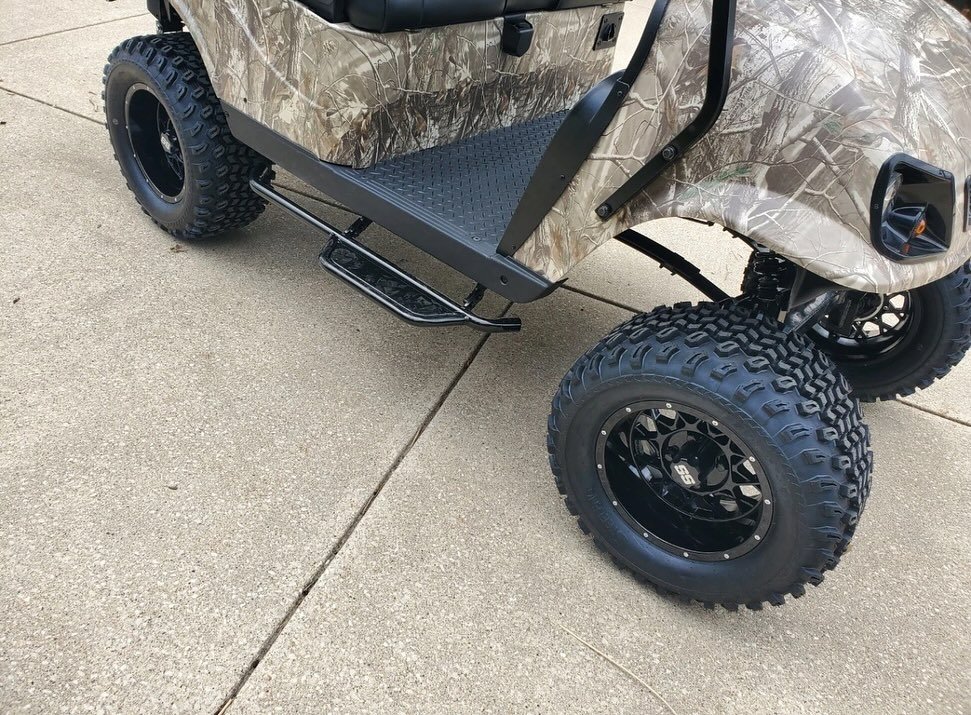

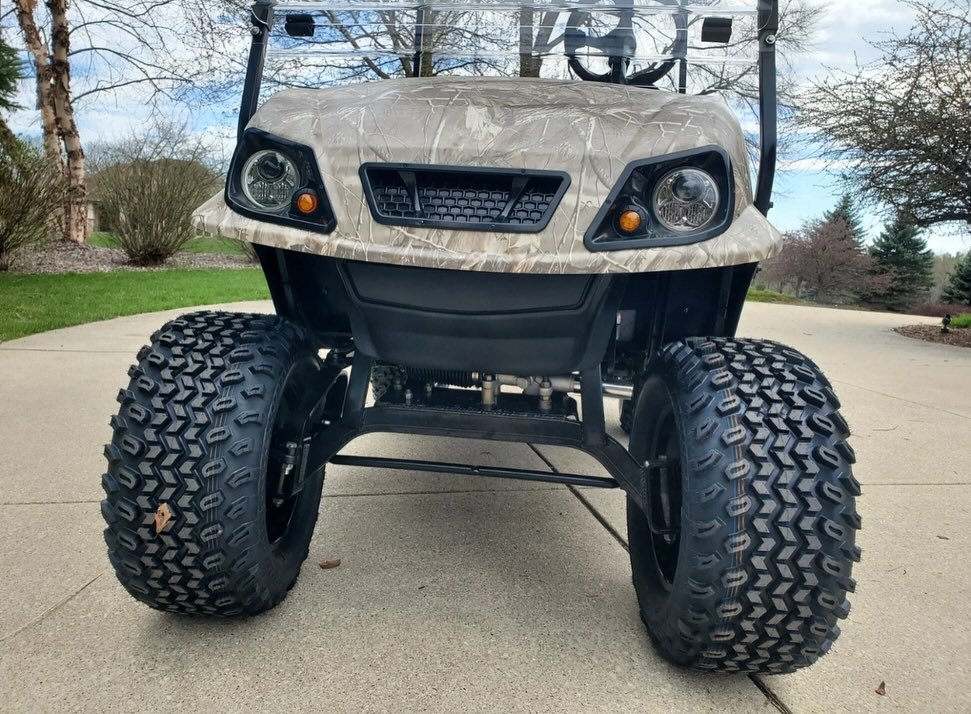

Tires: The pictured model features aggressive off-road tires, while standard models typically come with Hole-N-One, 20×9-12 tires with Rogue Alloy Wheels.
